Paper cores / Tubes

Creel up to 35 plies with pneumatic accumulator and automatic splicing unit (automatic splicers). The lifting and the rotation of the reels is done with electric motors which can, as an option, have an automatic indexing.



  • TCM CREEL 130  :     2 to 10 plies  / width max. 130mm (5″)
  • TCM CREEL 200  :  10 to 30 plies  / width max. 200mm (8″)



 GLUEPOT:

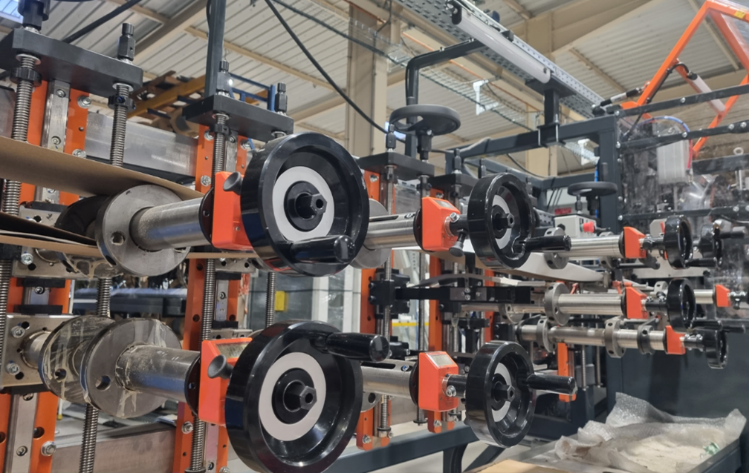

Cascading gluing system with individual angle ajustment of each ply:

  • TCM EASY GLUEPOT    :   3 to 10 plies
  • TCM EASY GLUEPOT    :   8 to 16 plies
  • TCM EASY GLUEPOT    :  16 to 30 plies

Spiral Winder to produce tubes from 12mm(0.5″) to 1600(63″)

  • TCM WINDER 12/76        :  4 drums/ 2 belts
  • TCM WINDER 25/300     :  4 drums/ 2 belts
  • TCM WINDER 50/650     :  4 drums/ 2 belts
  • TCM WINDER 50/1600   :  2 drums/ 1 belt



TCM “in line” CUTTERS:

Rotation of the knives with servo-motor, knives plunging with servo-motor ; settings and control from the touch screen panel (without opening the guards)

Simple knife paper tube Cutter :

  • TCM CUTTER 300 Auto
  • TCM CUTTER 650 Auto

Multiple knives paper tube Cutter:

  • TCM MULTI CUTTER 76
  • TCM MULTI CUTTER 300
  • TCM MULTI CUTTER 650



TCM RECUTTER



TCM TR1 RECUTTER

400 to 800 mm parent tube

ID: 20-100mm

Thickness: 1-6 mm

20-25 minute cuts depending on thickness and number of knives
